Analog Input:

• 4‑channel, current input

• Ideal for 4–20 mA sensors, transmitters, and process instrumentation

Analog Output:

• 2‑channel, current output

• Suitable for proportional valves, drives, and analog‑controlled devices

Discrete Input:

• 4‑point digital input

Discrete Output:

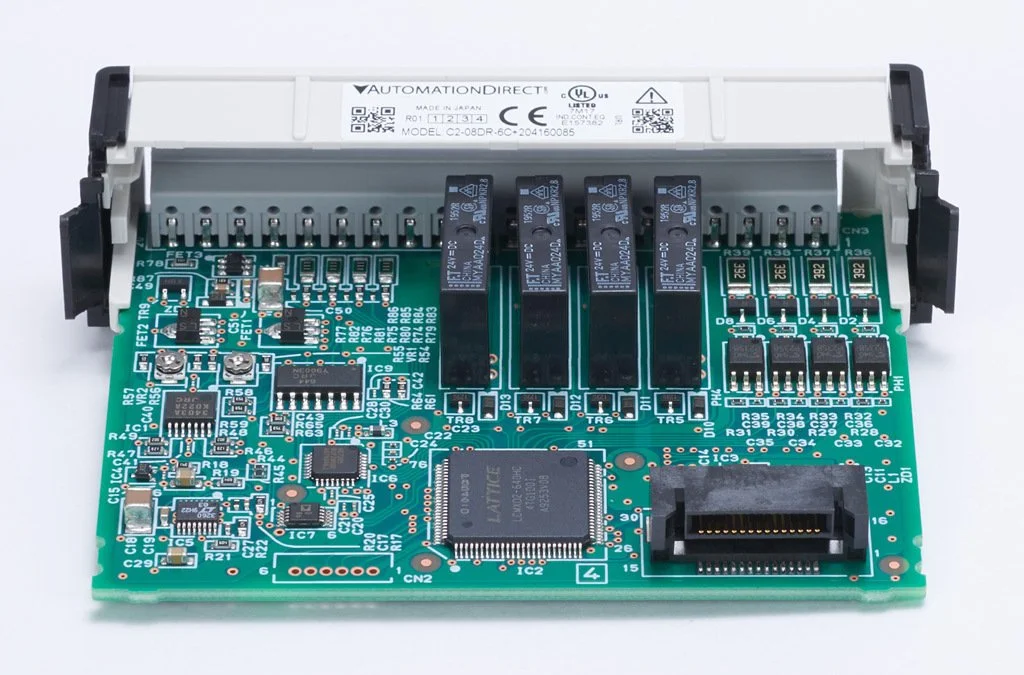

• 4‑point relay output

• (4) Form A (SPST) relays for flexible switching of field loads

• Discrete Combo Module (High‑Voltage)

  Digital Inputs:

  • 8‑point input

  • Rated for 100–120 VAC

  Digital Outputs:

  • 6‑point relay output

  • Supports 6–240 VAC or 6–27 VDC loads

  • (6) Form A (SPST) relays, 1A per point

  Additional Features:

  • Removable terminal block included for fast installation and service

  • Ideal for interfacing with contactors, solenoids, alarms, and machine‑level devices

Bundle Benefits

• Expands systems with both low‑voltage and high‑voltage I/O

• Supports analog measurement, analog control, AC inputs, relay outputs, and mixed‑voltage field devices

• Perfect for machine control, process monitoring, automation retrofits, and multi‑signal integration

• Fully compatible with CLICK PLUS CPUs and option slot architecture
